Agam MegH7

Most Powerful
Feature Packed
Small Form Factor

TAKING-OFF

Proudly Made in India

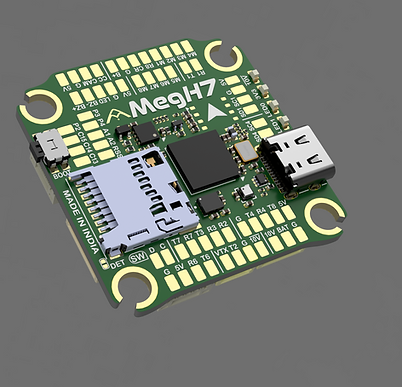

The Agam MegH7 is a high-performance flight controller built around the powerful STM32H7 processor, designed for modern FPV and autonomous platforms. It features a fully solderless, plug-and-play design for clean and reliable builds, while still providing exposed pads for advanced custom configurations.


An onboard 10V BEC powers HD digital video systems such as DJI Air Unit, Caddx Vista, and similar transmitters, while also supporting analog FPV systems. The integrated Betaflight OSD allows real-time display of critical flight data including battery voltage, flight time, warnings, RSSI, SmartAudio controls, and more.



The MegH7 offers seven dedicated UARTs, a full-size MicroSD card slot for virtually unlimited Blackbox logging, and optional support for SPI-based flash memory via onboard pads. A plug-and-play 4-in-1 ESC connector simplifies quadcopter builds, with additional motor pads available for octocopter configurations.


Technical Specifications

  • MCU: STM32H743 32-bit processor @ 480 MHz

  • IMU: ICM45686

  • Barometer: BMP390

  • OSD: AT7456E

  • UARTs: 7 (UART1, 2, 3, 4, 6, 7*, 8)

    • UART7 supports hardware flow control

  • PWM Outputs: 9 total (8 motor outputs + 1 LED)

  • Blackbox Logging:

    • Full-size MicroSD card slot

    • Optional SPI flash support (W25Q128JVP chip can be soldered additionally)

  • CAN interface for advanced CAN-based devices like

    • Agam CAN-GNSS with onboard GNSS module,  IMU, Magnetometer, and barometer

    • Agam CAN-FloRange sensor with Optical Flow, and range finder sensors for better stability

  • SPI &  I²C: external interface ports available

  • ESD Protected ports

Connectors

  • 1× MicroSD card slot (Blackbox logging)

  • 1× JST-SH 1.0 mm 8-pin ESC port (4-in-1 ESC)

  • 1× JST-GH 1.25 mm 6-pin GPS port (TX/RX + I²C1)

  • 1× JST-GH 1.25 mm 6-pin Telemetry port with flow control (UART7)

  • 1× JST-SH 1.0 mm 6-pin Digital VTX port (DJI / Caddx systems)

  • 1× JST-GH 1.25 mm 4-pin RX port (Crossfire / ELRS)

  • 1× JST-GH 1.25 mm 4-pin CAN port (Agam CAN-GNSS & peripherals)

  • 1× JST-SH 1.0 mm 8-pin SPI port (external sensors / SPI logging)

  • 1× JST-SH 1.0 mm 4-pin I²C port (external magnetometer/barometer, I²C4)

  • 1× JST-SH 1.0 mm 4-pin LED & buzzer port

Exposed Pads for Custom Use

  • 7× UART

  • 2× I²C

  • Analog camera input

  • Analog VTX output

  • 8× motor PWM pads (M1-M4, M5-M8)

  • LED & buzzer pads

  • Analog inputs: A1, A2, RSSI

  • PINIO: P2, P3, P4 (can also be custom configured as any GPIO functionality)

    • (P1 directly controls VTX on/off)

  • GPIO: C13, C14, C15 (can be custom configured as SPI-CS, SPI-DRDY, Relays, LEDs etc.)

Power & Electrical

  • Input Voltage: 2S–8S LiPo

  • BEC Outputs:

    • 5 V @ 3 A continuous

    • 10 V @ 3 A continuous

  • Indicators:

    • 2× user LEDs

    • 1× 3.3V PWR LED

    • 1× 10V VTX on/off indicator

Mechanical & Interface

  • USB: Type-C

  • Mounting: 30.5 × 30.5 mm, Ø4 mm holes with Ø3 mm grommets

  • Dimensions: 37.5 mm × 39 mm × 8.8 mm

  • Weight: TBD

Firmware Support

687474703a2f2f7374617469632e726367726f7570732e6e65742f666f72756d732f6174746163686d656e74732f362f312f302f332f372f362f61393038383835382d3130322d696e61762e706e67.png

PRICING

This is an introductory pricing and the production batch pricing will change. We are not taking any pre-orders for now but you can sign up below for updates.

If you are interested in this product, please contact info@agamrobotics.com​

​

Wait for more updates and official release for pre-orders.

INR 12,999​

INR 9,999​
